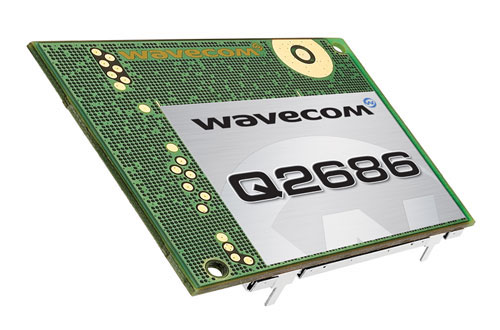

WAVECOM Q2686

LARGE RANGE OF PERIPHERALS FOR M2M SOLUTION

Equipped with up to 44 GPIOs, the Q2686 is especially suited to applications which require a high number of connections. The Open AT® OS runs on an ARM9 core, providing applications with up to 87 MIPS (using VariSpeed). It features a market-leading range of peripheral interfaces, including companion Bluetooth® and GPS.

- Core processor : ARM9, 32 bit, 104 MHz running Open AT® RTOS as standard
- Memory : Internal, supports up to 128Mb Flash, 128 MB PSRAM
- Digital Control : Up to 44 GPIO, 2 INT, 2 SPI, 1 I2C, 5 x 5 keyboard
- Digital Comms : 2 UART, USB 2.0
- Analogue Interfaces : 2 ADC
- Audio Interfaces : 2 analogue channels, 1 PCM
- Cellular Radio : Global operation (auad GSM band: 800/900/1800/1900 MHz)
- Cellular Data : GSM standard SMS, Fax, CSD (circuit), GPRS cl 10 (packet)
- Cellular Voice : Quad codec (FR/HR/EFR/AMR), VDA2A
- RF and IO connectivity : 1 UFL connector for GSM FR, 1 RF connection which allows to support board to board solution, 100 I/O Pins connector
- Dimensions : L40 x W32.2 x H 4mm
